- Place of Origin: Shandong Weifang
- Brand Name: Tianfu
- Model Number: 404

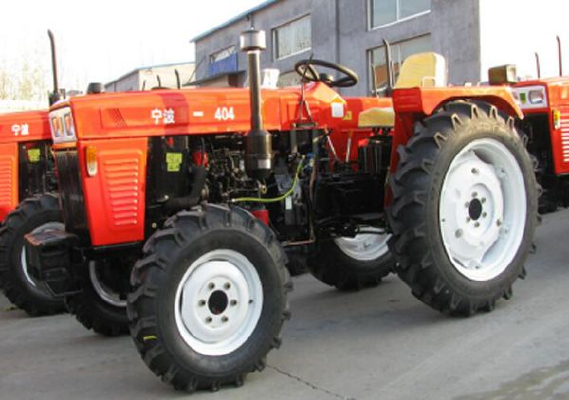

This series tractor is designed basing on the normal type,and making stronger design.Also equipped with PTO under the International standard.It is a new generation tractor and has the characteritics of large power,low fuel consumption.more shift gears,good mached performance and convenient operation and maintenance.
Model |
TF-304(300) |
TF-324(320) |
TF-354(350) |
TF-404(400) | ||||||||
Type | 4*2(4*4) | |||||||||||
Dimensions of Tractor | Dimension(L.W.H)mm | 3790*1590*2035 | ||||||||||
Tread | Front mm | 1300 | ||||||||||
Rear mm | 1300.1400.1500ajustable | |||||||||||
Wheel base mm | 2105(1970) | |||||||||||
Min.Ground Clearance mm | 300(350) | |||||||||||
Dry Mass Kg | 1970-2105 | |||||||||||
Engine | Model | Lijia2102/changchai390 | Lijia2105 | Lijia2100 | JDM490 | |||||||
Type | Water cooled,vertical,4stroke and direct injection | |||||||||||
Number of cylinder | 3 | 3 | 4 | 4 | ||||||||
Rated Power Kw（hp) | 22.06 | 23.5 | 25.7 | 29.4 | ||||||||
Type size | 11.2-24/6.50-16(11.2-24/5.50-16) | |||||||||||
Clutch | Single chip,dry friction and single stage clutch | |||||||||||
Gear box | 8 2 | |||||||||||
PTO r/min(Optional) | 8 spligle 540/720or540/1000 | |||||||||||
