- Place of Origin: Shandong Weifang
- Brand Name: Tianfu
- Model Number: 484

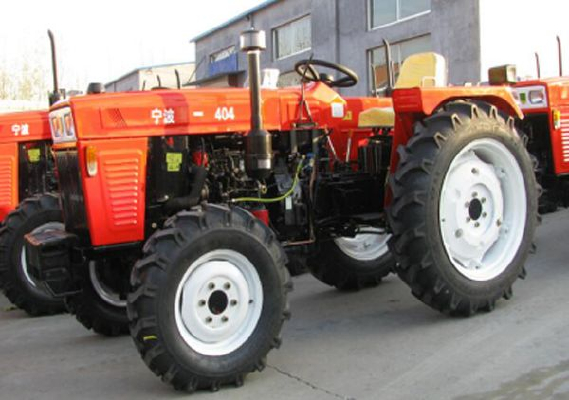

This series tractor combine all the technology of similar models.Under the maturity model basic,this model optimize the new design and improve the strength of the drive train ,equipped with cluth shift,hydraulic steering ,double cluth and hydraulic lifting,improving the regulation of diesel engine and chassis of life,while improving the overall power and economy.
Model | 404(400) | 454(450) | 484(480) | 504(500) | 554(550) | |||||||||
Type | (4*4) | |||||||||||||
Dimensions of Tractor | Dimension(L.W.H)mm | 3790*1620*2130 | ||||||||||||
Tread | Front mm | 1300 | ||||||||||||
Rear mm | 1300.1400.1500ajustable | |||||||||||||
Wheel base mm | 2035(2030) | |||||||||||||
Min.Ground Clearance mm | 345(380) | |||||||||||||
Dry Mass Kg | 2120-2210 | |||||||||||||
Engine | Model | Xinchai490 | Xinchai495 | Xinchai498 | JD4100 | JD4102 | ||||||||
Type | Water cooled,vertical,4stroke and direct injection | |||||||||||||
Number of cylinder | 4 | |||||||||||||
Rated Power Kw（hp) | 39.4 | 33 | 35.3 | 36.7 | 40.43 | |||||||||
Type size | 11.2-28/7.50-16(11.2-28/6.0-16) | |||||||||||||
Clutch | Single chip,dry friction and single stage clutch | |||||||||||||
Gear box | 8 2 | |||||||||||||
PTO r/min(Optional) | 8 spligle 540/720or540/1000 | |||||||||||||
